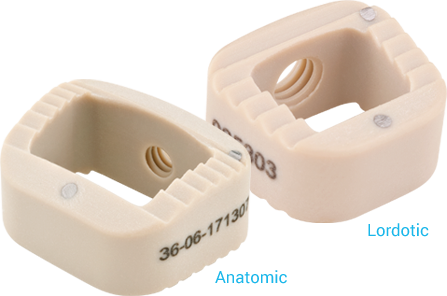

InFill® Interbody Fusion Systems patented in situ graft delivery solution represents an evolution in addressing the biologic void in spine fusion.
- Designed for small incisions, making it ideal for minimally invasive procedures
- Bulleted tip aids in distraction insertion and placement.
- Large load bearing surface restores and maintains disc space and height.
Download our InFill® Cervical Device Data Sheet
InFill Cervical Device Sizing and Graft Chamber Volume
InFill CERVICAL LORDOTIC
6 DEGREES OF LORDOSIS| WIDTH (mm) | LENGTH (mm) | HEIGHT (mm) | GRAFT CHAMBER VOLUME (cc) |
|---|---|---|---|
| 14 | 12 | 05 | 0.27 |
| 14 | 12 | 06 | 0.32 |
| 14 | 12 | 07 | 0.38 |
| 14 | 12 | 08 | 0.43 |
| 14 | 12 | 09 | 0.49 |
| 14 | 12 | 10 | 0.54 |
| 17 | 13 | 05 | 0.41 |
| 17 | 13 | 06 | 0.50 |
| 17 | 13 | 07 | 0.58 |
| 17 | 13 | 08 | 0.67 |
| 17 | 13 | 09 | 0.75 |
| 17 | 13 | 10 | 0.84 |
InFill CERVICAL ANATOMIC
| WIDTH (mm) | LENGTH (mm) | HEIGHT (mm) | GRAFT CHAMBER VOLUME (cc) |
|---|---|---|---|
| 14 | 12 | 5 | 0.20 |
| 14 | 12 | 6 | 0.26 |
| 14 | 12 | 7 | 0.31 |
| 14 | 12 | 8 | 0.37 |
| 14 | 12 | 9 | 0.42 |
| 14 | 12 | 10 | 0.48 |
| 17 | 13 | 5 | 0.31 |
| 17 | 13 | 6 | 0.40 |
| 17 | 13 | 7 | 0.48 |
| 17 | 13 | 0 | 0.57 |
| 17 | 13 | 9 | 0.66 |
| 17 | 13 | 10 | 0.74 |
